Extra Shield FR-LSH Flexible Cables
Flame-retardant, low-smoke single-core unsheathed industrial cables that minimise smoke and toxic emissions during fire — ideal for hospitals and commercial complexes.
Extra Shield FR-LSH Flexible Cables
Plaza Extra Shield FR-LSH Cables are built for environments where safety truly cannot be compromised. Featuring flame-retardant, low-smoke insulation paired with high-conductivity copper conductors, these cables are engineered to drastically reduce toxic emissions and black smoke in the event of a fire - a critical factor in places like cinema halls, hospitals, and high-rise buildings where evacuation can be challenging. We all know that in many fire tragedies, it's the smoke and toxic fumes from burning PVC that claim lives, not just the flames themselves. Plaza addresses this real-world concern head-on, manufacturing these cables at an ISO 9001, ISO 14001 & OHSAS 18001 certified facility, ensuring every wire meets the highest standards of safety, efficiency, and environmental responsibility. For densely populated spaces and fire-prone environments, Plaza Extra Shield isn't just a cable - it's peace of mind.
Specifications Details
| STANDARDS | IS:694, IS: 8130, IS: 5831, IEC 60227, BS EN 50525, IEC: 332-1, ASTM- 2843 & ASTM- 2863 |
|---|---|
| CONDUCTOR | FR- LSH cables are made of Electrolytic Grade, bright annealed bare copper with more than 100% conductivity conforming to IS:8130 |
| INSULATION | The conductors are insulated with FR- LSH compound, which has an Oxygen Index of 31.5%-32% which increases its efficiency in firefighting. In the case of fire, conventional PVC insulated wires give out thick, black smoke and toxic Hydrochloric Acid gas, which reduces the visibility and makes rescue operations difficult. In contrast, Extra Shield FR-LSH wires give out not only very little smoke or toxic gases. but also restricts the spread of fire. |
| COLORS | Plaza coils are available in Red, Yellow, Blue, Black, White and Green. Special colors available on request. |
| MARKING | As per IS: 694 specifications with special marking FR-LSH |
| TESTING | All plaza wires are tested as per IS:694, IS: 8130, IS: 5831, IEC 60227, BS EN 50525, IEC: 332-1, ASTM- 2843 & ASTM- 2863 |

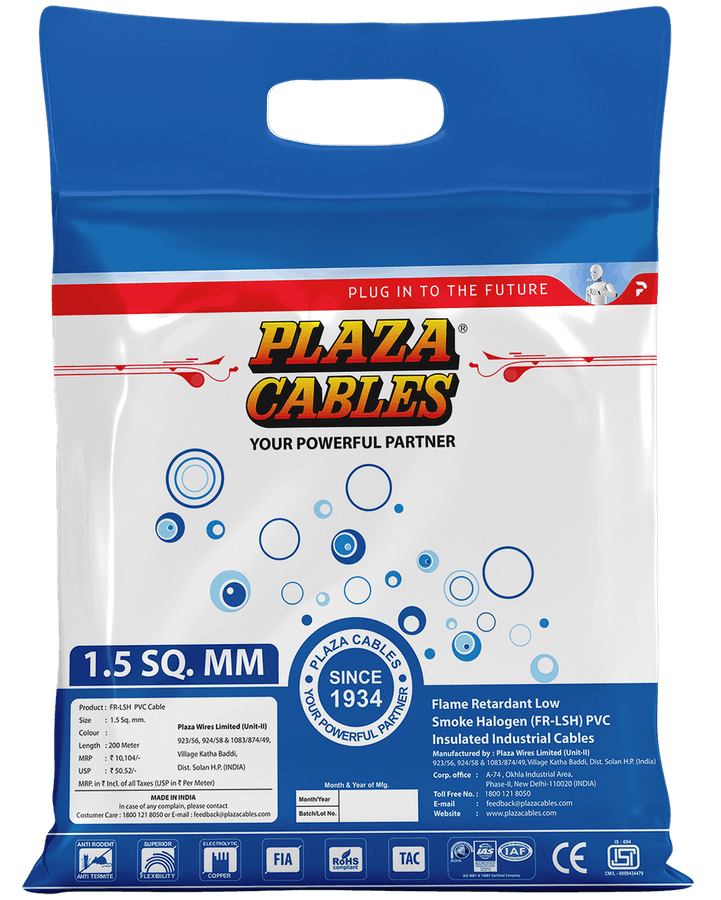

| PACKING | Multistrand flexible wires of up to 10 mm² are available in poly packing of 200 meters. Longer lengths available on request. |
- Multi-storied high-rise buildings (hotels, schools, banks, hospitals, factories, commercial complexes, theatres, residential apartments).
- Wiring in fire- or explosion-prone areas.
- Chemical factories and industrial environments.
- Schools, hospitals, and healthcare facilities.
- Theatres, malls, and other commercial complexes.
- Triple-layer insulation for enhanced safety
- 99.97% pure copper with high conductivity (102% IACS)
- Low conductor resistance for efficient power transmission
- Low smoke or toxic gases at the time for fire & also restricts the spread of fire.
- Lead free PVC
- RoHS compliant
- REACH compliant
- Rodent protection
Specifications
| Nominal Cross Sectional area of conductor | Number/ Nom. Dia of cond. Strands | Thickness of Insulation (Nom) | Overall Diameter (Max.) | Current Carrying Capacity, 2 Cables Single Phase | Max. DC Conductor Resistance per KM at 20⁰C |
|---|---|---|---|---|---|
| sq. mm. | mm | mm | mm | Amps | Ohms |
| 0.50 | 16/0.20 | 0.60 | 2.6 | 5 | 39.0 |
| 0.75 | 24/0.20 | 0.60 | 2.8 | 9 | 26.0 |
| 1.00 | 32/0.20 | 0.60 | 3.0 | 14 | 19.5 |
| 1.50 | 30/0.25 | 0.60 | 3.4 | 19 | 13.3 |
| 2.50 | 50/0.25 | 0.70 | 4.1 | 26 | 7.98 |
| 4.00 | 56/0.30 | 0.80 | 4.8 | 34 | 4.95 |
| 6.00 | 84/0.30 | 0.80 | 5.3 | 44 | 3.30 |
| 10.00 | 80/0.40 | 1.00 | 7.0 | 54 | 1.91 |
